Winner 2017

Award for
Structural Transformation

Project Description

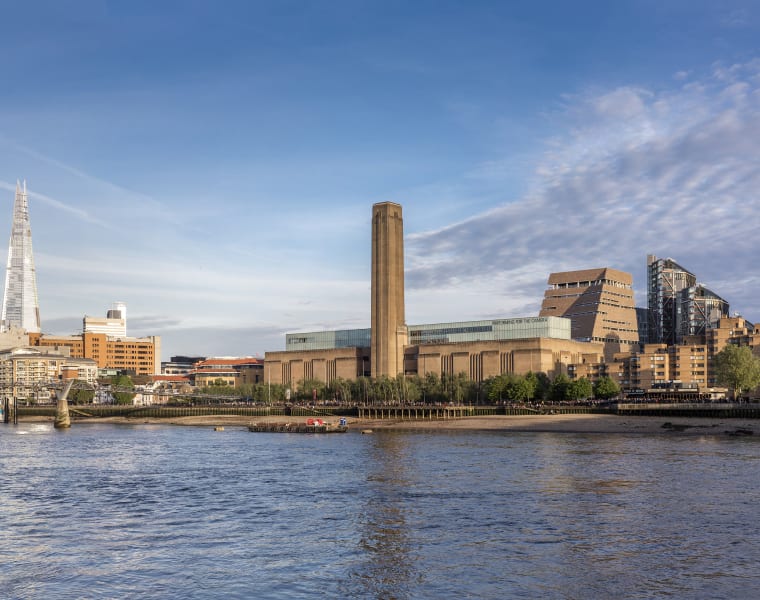

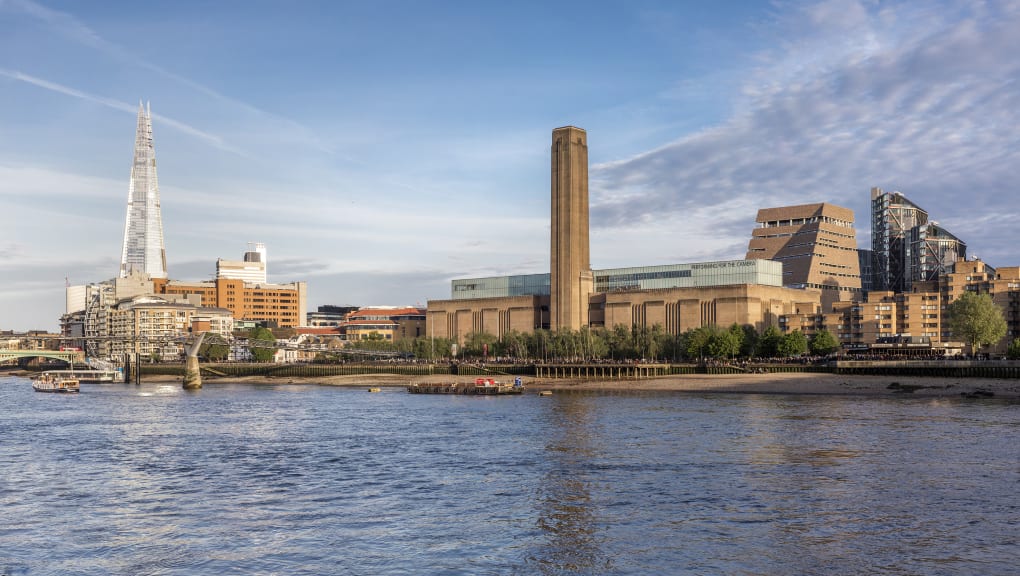

The Tate Modern Switch House forms the second and final construction phase of the Tate Modern gallery. It is a unique building that has pushed the boundaries of modern design and engineering. Designed by Herzog and de Meuron Architects and engineered by Ramboll, it provides extraordinary spaces for Tate to present an increasingly international view of modern and contemporary art from around the world. The building successfully integrates display, learning and social functions, strengthening links between the gallery and its locality.

Judge’s comments

The Tate Modern Switch House has ten levels above ground, is 65m tall and equivalent in height of a 20 storey building, providing 65,000m2 of new space over 11 levels.

In order to provide column free spaces within the North gallery on level 04, the six storey 1700T northern façade above it had to be carried on the gallery’s long span roof structure. However, as the building above was being constructed, loads on this roof structure would increase and it would deflect, preventing achievement of the very tight tolerances required. The judges were impressed by the incorporation of a structural system that was designed to distribute loads and control, monitor and adjust movement of the gallery’s long span roof structure during this process. The jacks were used finely to adjust the levels of the roof structure whilst the building above grew larger and heavier. Once complete, the jacks were grouted solid.

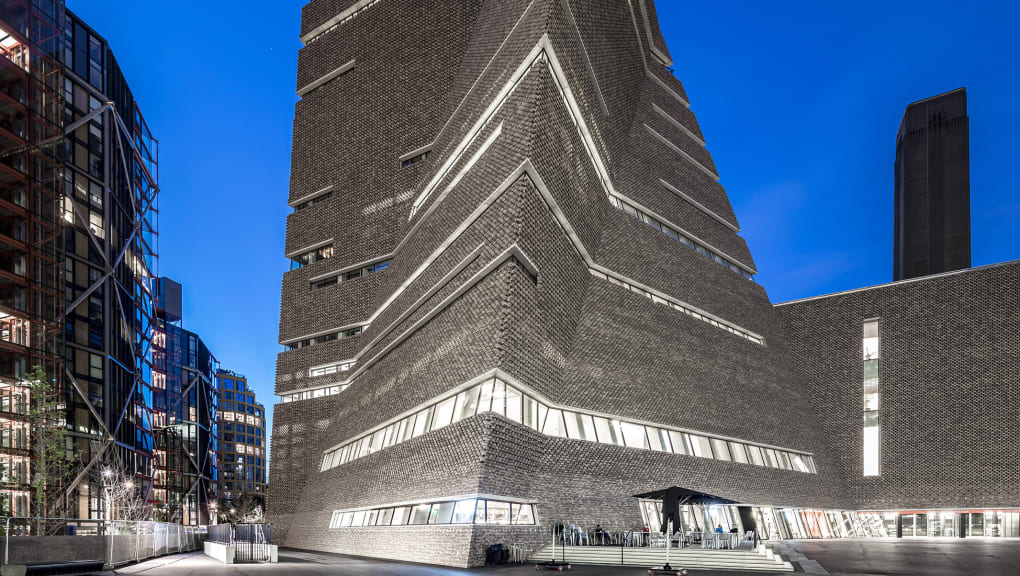

With no movement joints, the 336,000 brick façade was constructed to incredible tolerances of +/- 2mm. The engineers designed a hand laid system with prefabricated blocks, dowels instead of mortar and corbels as supports, in collaboration with Cambridge University, determining the optimum arrangement of supports for the individual bricks in specially built test rigs. The design recuced a build programme of five years to 18 months, with construction possible in all weather.

Project overview

Structural Designer

  • Ramboli

Client Name

  • Tate


  • London


  • Herzog & de Meuron

Principal Contractor

  • Mace

Key Contractors

  • Brick and Scaffold Contractors: Swift Brickwork Contractors

    MEP Engineer: Max Fordham

    Quantity Surveyor: AECOM
