Project Description

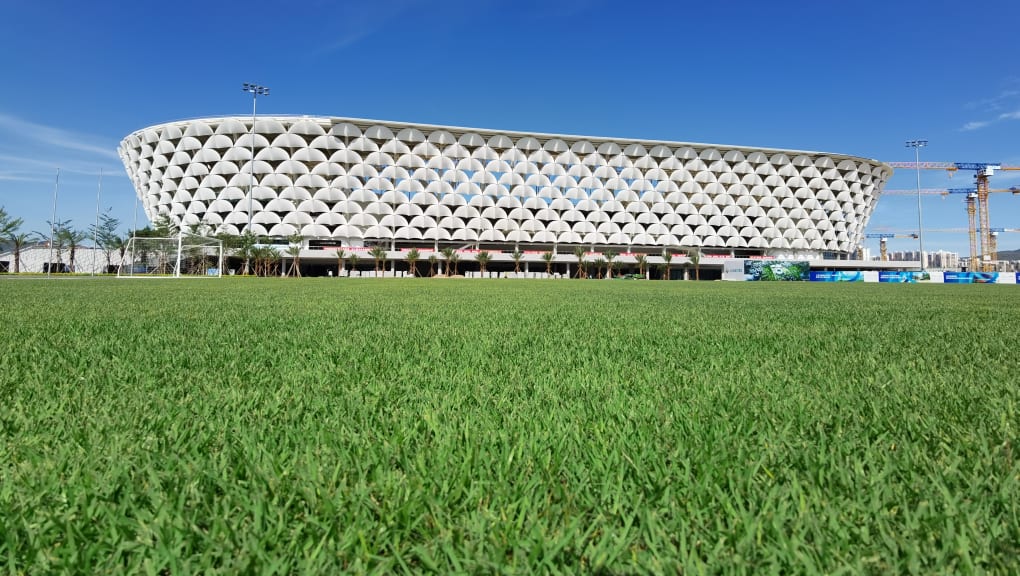

Serving as the main venue of the Asian Beach Games, this stadium has a construction area of 86,000 m2 and seats up to 45,000. This design, particularly of the roof, had to carefully consider the location of the stadium in which severe typhoons land frequently. In this project, the CFRP cable and high-strength cast steel G10MnMoV6-3 are used for the first time in large-scale spatial structures to achieve a lightweight structural design.

Judge’s comments

This stadium boasts an exemplar lightweight cable roof design.

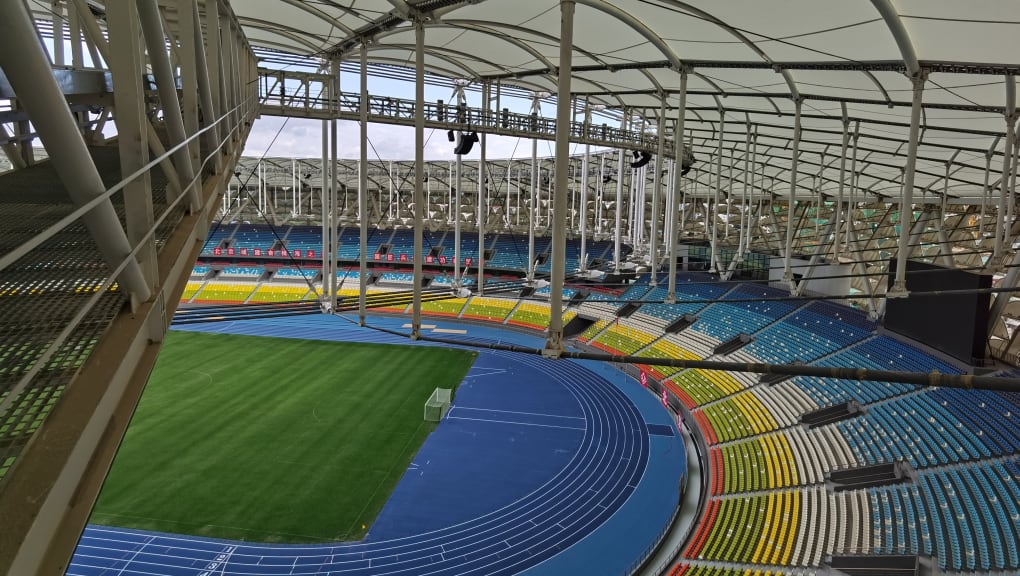

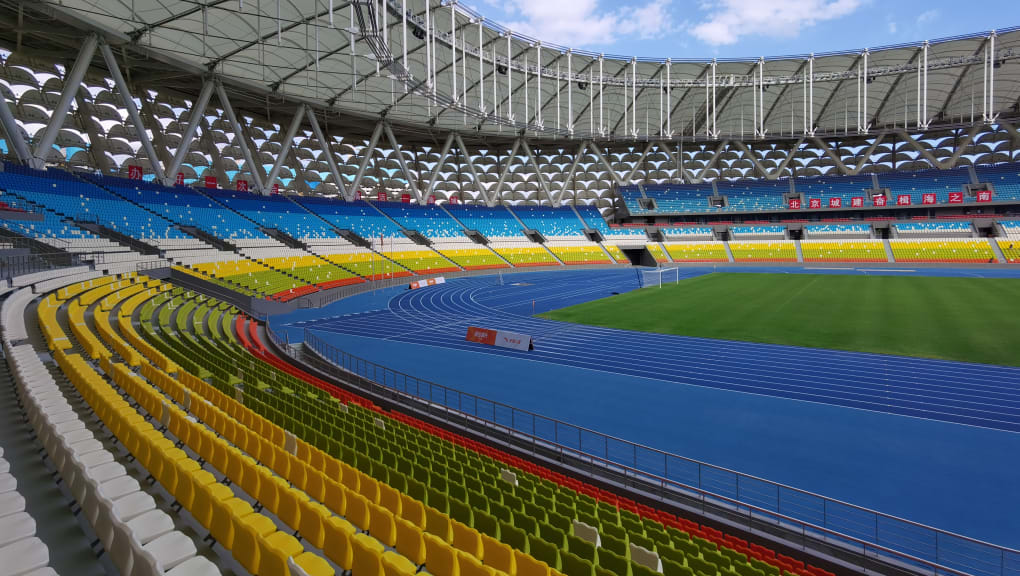

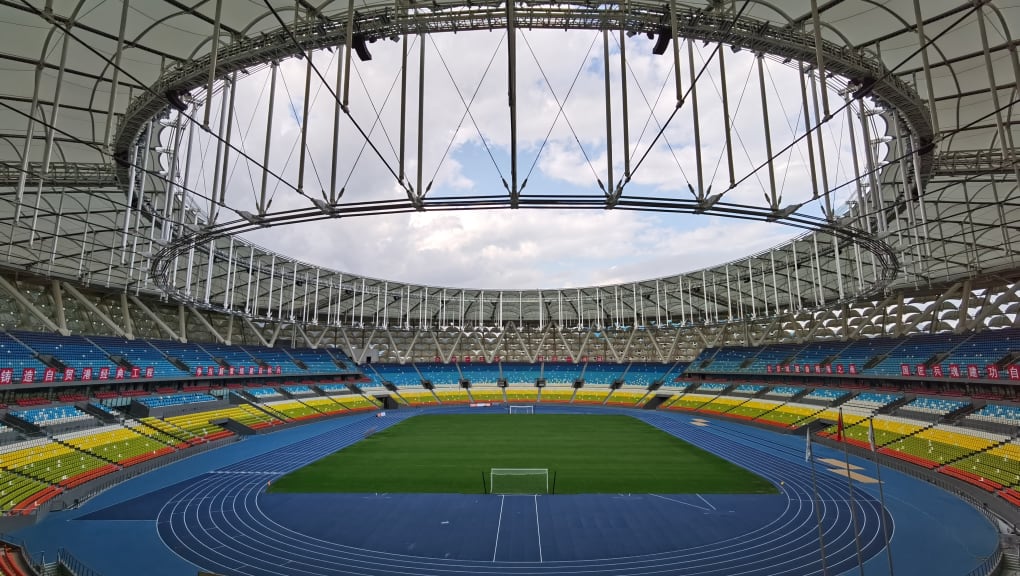

The inner roof structure has a 45m cantilever span and a convex spoke-wheel cable truss structure which offers greater stiffness than that of a concave cable truss. The unique design was adopted in response to the extreme weather and typhoons the region encounters.

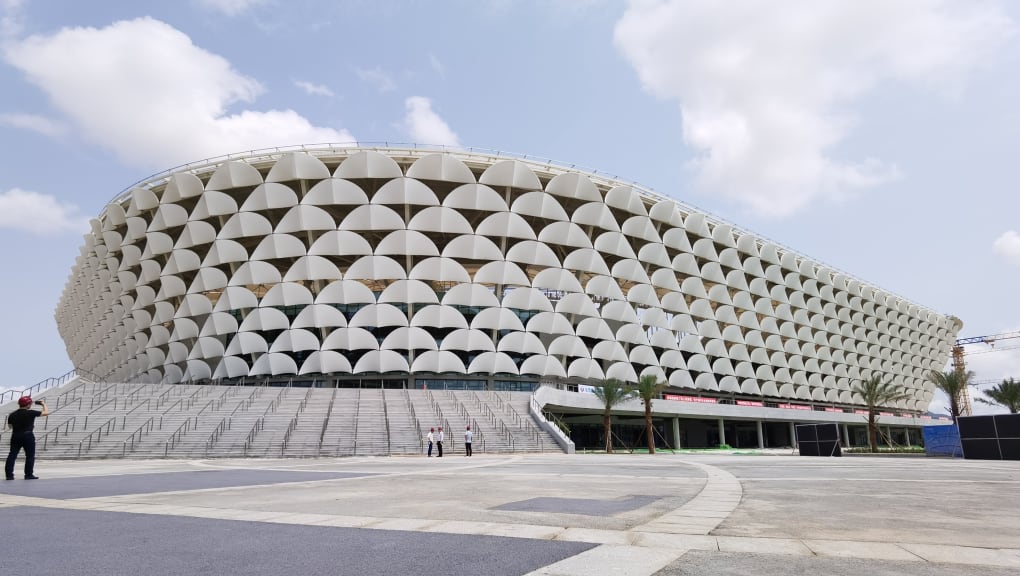

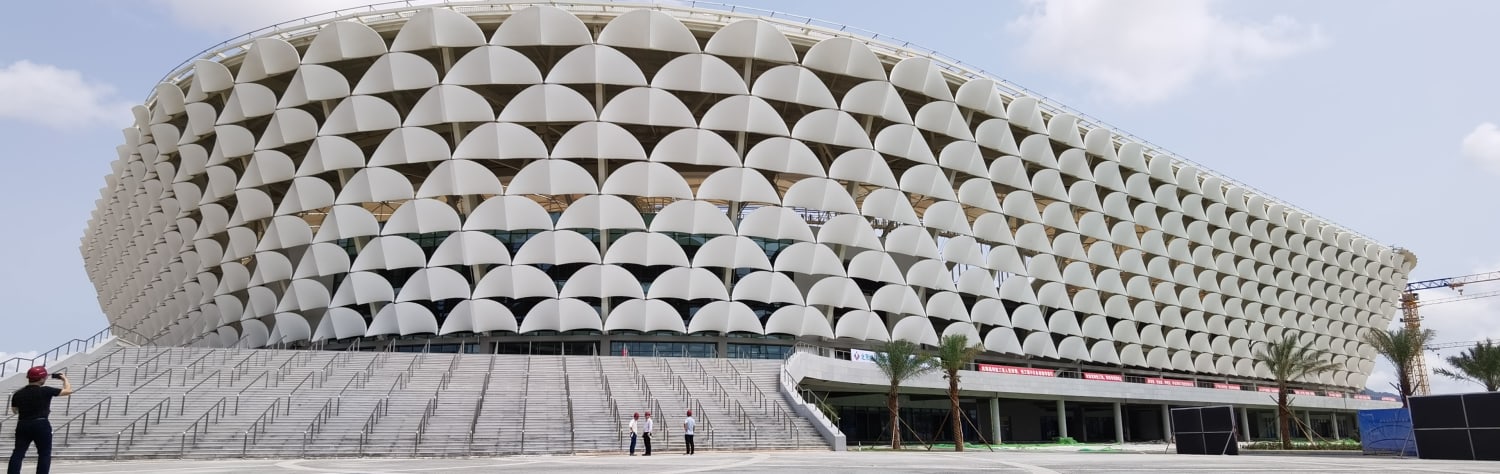

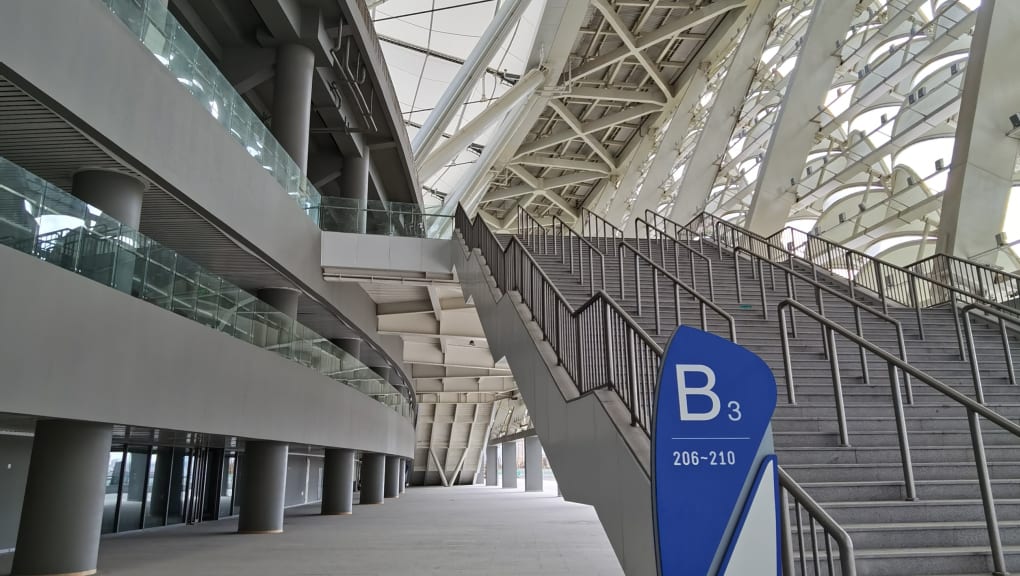

The outer roof is highly integrated into the architectural shape and forms a horizontal truss structure supported by a series of hinged columns, which, at the same time provides a robust supporting system for the inner roof structure.

Project overview

Structural Designer

  • Beijing Institute of Architectural Design

Client Name

  • Sanya Guoao Sports Industry Investment Co., Ltd.

Location

  • Sanya City, China

Architect

  • Gerkan, Marg & Partners

Principal Contractor

  • Beijing Urban Construction Sixth Group Co., Ltd.

Key Contractors

  • Beijing Urban Construction Sixth Group Co., Ltd. – Design Contractor

    University of Science and Technology Beijing – CFRP Cable Research and Development

    China Academy of Building Research – Wind Tunnel Test

    Zhejiang Jinggong Steel Structure Group Co., Ltd. – Steel Structure Contractor

    MCC (Shanghai) Steel Structure Technology Co., Ltd. – Cable Structure Contractor

    Juli Sling Co Ltd – Tension Ring Cable Supplier

    Guangdong Kinex Hardware Products Co., Ltd. – Radial Cable Supplier

    Chongqing Dali Cable Technology Co., Ltd. – CFRP Supplier

Year Submitted

  • 2022

Key attributes

  • Process
