Project Description

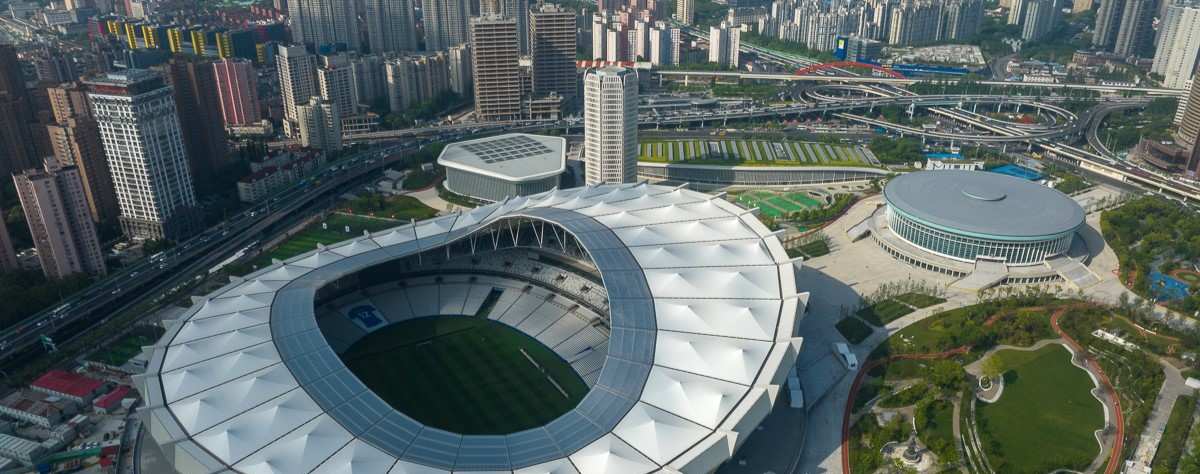

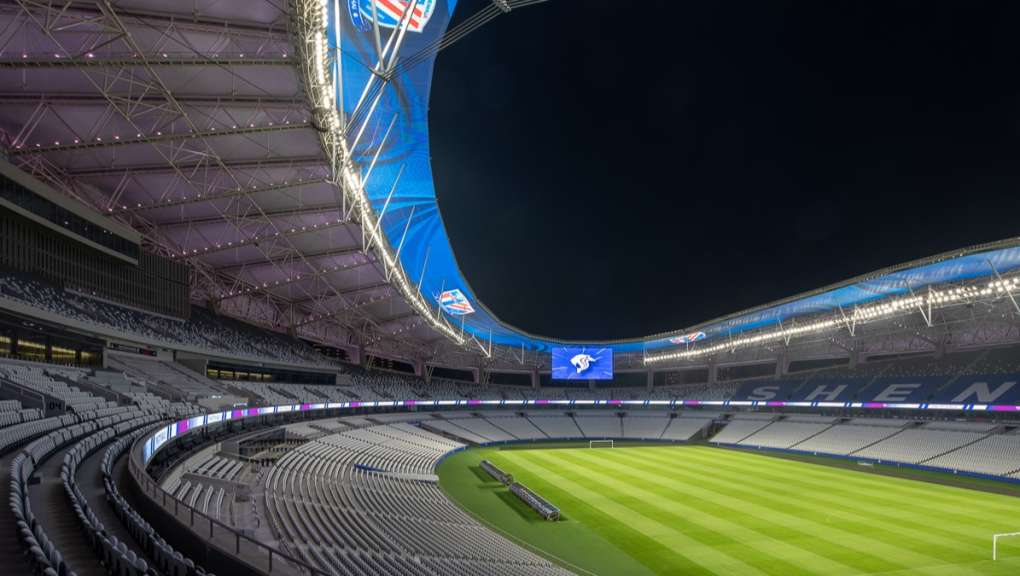

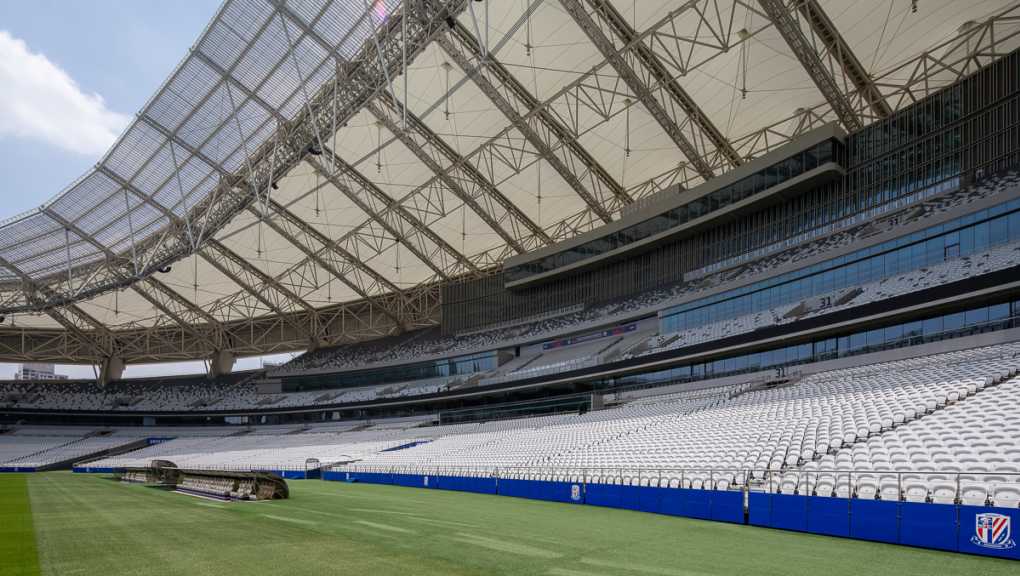

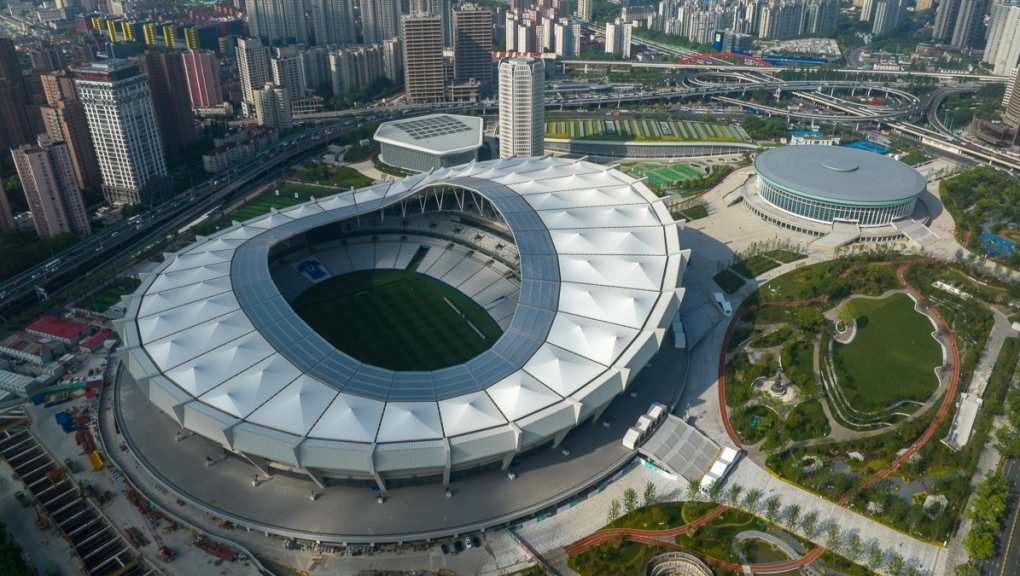

The Shanghai Stadium, initially completed in 1997, underwent significant renovations to meet FIFA requirements. The stadium's seating capacity was increased from 58,000 to 72,000, and interactive facilities were added to enhance its status as a premier sports venue. In order to meet requirement for full coverage of the stands the steel roof was further extended 16.5m towards the inner field, and the cantilever span increased to 81.5m after renovation.

Judge’s comments

This pioneering project is the first large-scale cantilever extension of a cantilevered steel tube truss structure using a spoke cable-supported system in China.

A deep understanding of structural principles allowed the team to explore different structural options. Novel welding reinforcement technology was developed to strengthen steel pipe members and intersecting nodes under high-stress conditions, addressing deficiencies in the structural strength of the renovated roof framework.

This is restoration on a large scale, setting the benchmark for sports architecture reinforcement and renovation over new build. A well-considered and technically proficient solution which increased collective professional knowledge in the rarified field of stadia extensions.

Project overview

Structural Designer

  • Arcplus Institute of Shanghai Architectural Design & Research (Co.,Ltd)

Client Name

  • Shanghai Juss Sports Development(Group) Co.,Ltd

Location

  • Shanghai, China

Architect

  • Arcplus Institute of Shanghai Architectural Design & Research (Co.,Ltd)

Principal Contractor

  • Shanghai Construction No.1 (Group) Co., Ltd

Key Contractors

  • Nanjing Dong-Da Modern Prestressed Engineering Co.,Ltd (Analysis of cable network construction)

    Shanghai Mechanized Construction Group Co.,Ltd (Steel structure construction)

    Shanghai Solar Membrane Structure Co., Ltd (Membrane structure construction consultant)

    Tongji University, Southeast University, Shanghai Mechanized Construction Group Co.,Ltd. (Joint experimental research)

    Tongji University, Arcplus Institute of Technical Center (Wind tunnel test)

    Arcplus Institute of Technical Center (Membrane material property test)

    Shanghai Mechanized Construction Group Co.,Ltd., Shanghai Research Institute of Building Sciences Co., Ltd. (Structural health monitoring).

Year Submitted

  • 2024
