Reinforced Concrete for Colliery Surface Plant

Author: Bridges, G P

Date published

N/A

First published: N/A

Price

Standard: £9 + VAT
Members/Subscribers: Free

Buy Now

Added to basket

Back to Previous

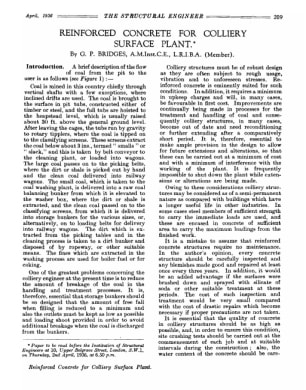

Reinforced Concrete for Colliery Surface Plant


The Structural Engineer
Reinforced Concrete for Colliery Surface Plant
Date published

N/A

Author

Bridges, G P

Price

Standard: £9 + VAT
Members/Subscribers: Free

First published

N/A

Buy Now
Author

Bridges, G P

A brief description of the flow of coal from the pit to the user is as follows (see Figure 1):- Coal is mined in this country chiefly through vertical shafts with a few exceptions, where inclined drifts are used. The coal is brought to the surface in pit tubs, constructed either of timber or steel, and the full tubs are hoisted to the heapstead level, which is usually raised about 30 ft. above the general ground level. After leaving the cages, the tubs run by gravity to rotary tipplers, where the coal is tipped on to the classifying screens. These screens extract the coal below about 3 ins., termed "smalls" or "slack," and this is taken by belt conveyor to the cleaning plant, or loaded into wagons. The large coal passes on to the picking belts, where the dirt or shale is picked out by hand .and the clean coal delivered into railway wagons. The small coal, which is taken to the coal washing plant, is delivered into a raw coal balancing bunker from which it is elevated to the washer box, where the dirt or shale is extracted, and the clean coal passed on to the classifying screens, from which it is delivered into storage bunkers for the various sizes, or, alternatively, on to loading belts for delivery into railway wagons. The dirt which is extracted from the picking tables and in the cleaning process is taken to a dirt bunker and disposed of by ropeway, or other suitable means. The fines which are extracted in the washing process are used for boiler fuel or for coking. G.P. Bridges

Additional information

Format:
PDF
Publisher:
The Institution of Structural Engineers

Tags

Issue 4
