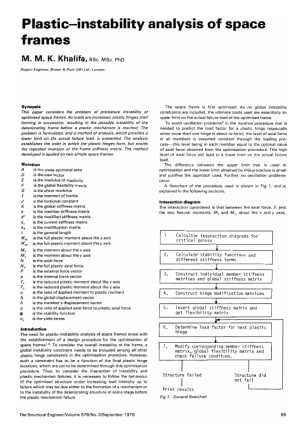

Plastic-instability Analysis of Space Frames

The Structural Engineer
Plastic-instability Analysis of Space Frames
Date published

N/A

First published

N/A

Price

Standard: £9 + VAT
Members/Subscribers: Free

Buy Now

This paper considers the problem of premature instability of optimised space frames. As loads are increased, plastic hinges start forming in succession, resulting in the possible instability of the deteriorating frame before a plastic mechanism is reached. The problem is formulated, and a method of analysis, which provides a lower limit on the actual failure load, is presented. The analysis establishes the order in which the plastic hinges form, but avoids the repeated inversion of the frame stiffness matrix. The method developed is applied on two simple space frames. M. M. K. Khalifa

Additional information

Format:
PDF
Publisher:
The Institution of Structural Engineers

Tags

Issue 15
