The Structural Design of the Guggenheim Museum, Bilbao, Spain

Tag
Author
Iyengar, H;Novak, L;Sinn, R;Zils, J
Date published
N/A
Price

Standard: £10 + VAT
Members/Subscribers: Free

The Structural Engineer
Author

Iyengar, H;Novak, L;Sinn, R;Zils, J

Citation

The Structural Engineer, Volume 78, Issue 12, 2000

Date published

N/A

Author

Iyengar, H;Novak, L;Sinn, R;Zils, J

Citation

The Structural Engineer, Volume 78, Issue 12, 2000

Price

Standard: £10 + VAT
Members/Subscribers: Free

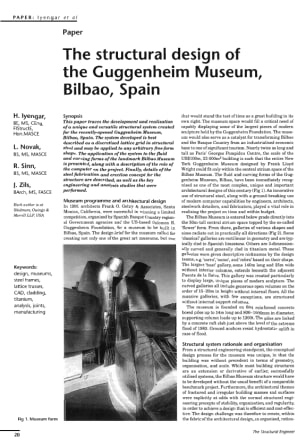

This paper traces the development and realisation of a unique and versatile structural system created for the recently-opened Guggenheim Museum, Bilbao, Spain. The system developed is best described as a discretised lattice grid in structural steel and may be applied to any arbitrary free-form shape. The application of the system to the fluid
and curving forms of the landmark Bilbao Museum is presented, along with a description of the role of the computer on the project. Finally, details of the steel fabrication and erection concept for the structure are described, as well as the key engineering and analysis studies that were performed.
