Design and construction of the Greenside Place Bridge Link, Edinburgh

Author: Fryer, Simon

Date published

N/A

First published: N/A

Price

Standard: £9 + VAT
Members/Subscribers: Free

Buy Now

Added to basket

Back to Previous

Design and construction of the Greenside Place Bridge Link, Edinburgh


The Structural Engineer
Design and construction of the Greenside Place Bridge Link, Edinburgh
Date published

N/A

Author

Fryer, Simon

Price

Standard: £9 + VAT
Members/Subscribers: Free

First published

N/A

Buy Now
Author

Fryer, Simon

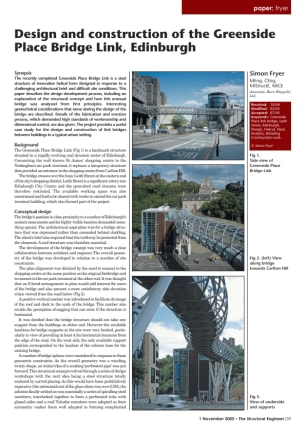

The recently completed Greenside Place Bridge Link is a steel structure of innovative helical form designed in response to a challenging architectural brief and difficult site conditions. This paper describes the design development process, including an explanation of the structural concept and how this unusual bridge was analysed from first principles. Interesting geotechnical considerations that arose during the design of the bridge are described. Details of the fabrication and erection process, which demanded high standards of workmanship and dimensional control, are also given. The project provides a useful case study for the design and construction of link bridges between buildings in a typical urban setting. Simon Fryer, MEng, CEng, MIStructE, MICE Associate, Buro Happold Ltd.
