When retrofitting existing structures, engineers are often working within constraints: limited geometry, existing materials, and legacy assumptions about performance. Nowhere is this more apparent than in vibration serviceability, where structural adequacy alone is not enough. Designing for human comfort introduces a different layer of complexity, one that requires careful dynamic analysis.
The Millennium Bridge in London, famously featured in the sixth instalment of the Harry Potter series, ‘Harry Potter and the Half-Blood Prince’, remains one of the most well-known examples of this challenge. While structurally sound, the bridge experienced unexpected lateral vibrations when opened to the public in 2000, highlighting the critical importance of understanding how people interact with structures dynamically.
Much of the original analysis was carried out by Arup engineers using early versions of Oasys GSA over 26 years ago. Non-linear analysis was explored using the GSRelax solver, then known as Fablon, which at the time could only run on the Unix version with text input files. The engineers performed dynamic and footfall calculations in small Fortran routines based on the principles that later became footfall analysis.
When it came to resolving the issue, advanced dynamic analysis became essential. The team at Arup carried out dynamic analysis in GSA and for the adding of the dampers, they used Nastran, spreadsheets and LS-DYNA Environment software to assess the non-linearity of the dampers.

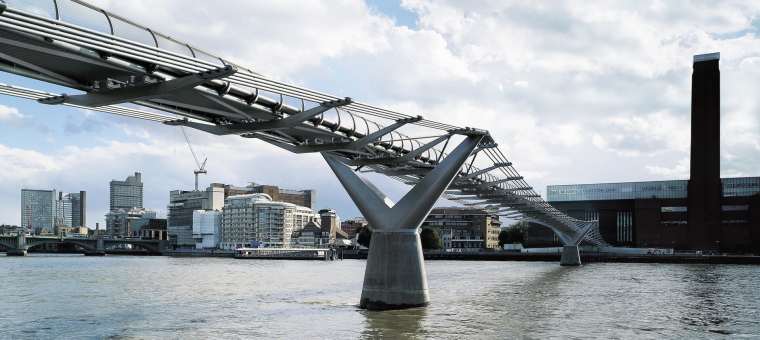

Image: © Arup
This project marked a turning point in how engineers approach vibration and continues to inform retrofit design today.
Why vibration matters in retrofit design
In retrofit projects, vibration issues often emerge because original designs did not fully account for dynamic excitation from occupants, machinery, or environmental loads. While disciplines such as seismic retrofitting are well-established for addressing extreme loading scenarios, serviceability issues such as human-induced vibration are equally critical to performance.
This is particularly critical for:
-
Footbridges and long-span structures
-
Floors in commercial or public buildings
-
Lightweight or slender structural systems
-
Structures with changing usage patterns
A structure may be safe, but still uncomfortable or unusable. For engineers, this means designing not just for strength, but for experience.
Image: © Paul Carstairs
Three key takeaways
For structural engineers carrying out vibration analysis in retrofit scenarios, the Millennium Bridge highlights several best practices:
1. Understand dynamic behaviour early
Even when working with existing structures, it is critical to assess natural frequencies, mode shapes, and damping ratios early in the process. Retrofitting without this understanding can lead to ineffective or overly conservative solutions.
2. Account for human-structure interaction
Pedestrian loading is not purely static or even purely dynamic, it is interactive. The Millennium Bridge demonstrated how crowd synchronisation effects can amplify vibration response beyond initial predictions. Pedestrian simulation modelling could be considered for further human behaviour analysis.
Image: © Arup
3. Use advanced modelling where required
Modern tools such as GSA for dynamic analysis now allow engineers to carry out detailed footfall analysis. These capabilities are essential when assessing retrofit strategies such as adding dampers or modifying stiffness.
Summary
The Millennium Bridge retrofit marked a turning point in how engineers approach vibration serviceability and human comfort. What was once a reactive fix has now become a proactive design consideration, supported by more advanced tools, better guidance, and deeper understanding of human-induced vibration effects.
For today’s structural engineers, particularly those working on retrofit projects, the message is clear: vibration analysis is not an optional extra. It is a fundamental part of delivering structures that are not only safe and efficient, but also comfortable and fit for purpose.
