Digitally designed – Qatar Faculty of Islamic Studies

Author: B. Lewis (Arup)

Date published

1 March 2016

Price

Standard: £10 + VAT
Members/Subscribers: Free

Back to Previous

Digitally designed – Qatar Faculty of Islamic Studies

Tag
Author
B. Lewis (Arup)
Date published
1 March 2016
Price

Standard: £10 + VAT
Members/Subscribers: Free

The Structural Engineer
Author

B. Lewis (Arup)

Citation

The Structural Engineer, Volume 94, Issue 3, 2016, Page(s) 8

Date published

1 March 2016

Author

B. Lewis (Arup)

Citation

The Structural Engineer, Volume 94, Issue 3, 2016, Page(s) 8

Price

Standard: £10 + VAT
Members/Subscribers: Free

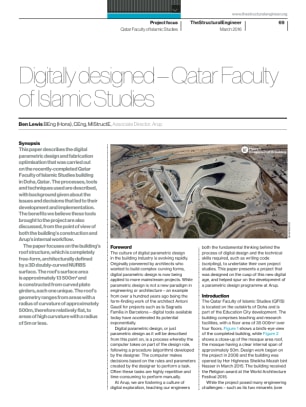

This paper describes the digital parametric design and fabrication optimisation that was carried out on the recently-completed Qatar Faculty of Islamic Studies building in Doha, Qatar. The processes, tools and techniques used are described, with background given about the issues and decisions that led to their development and implementation. The benefits we believe these tools brought to the project are also discussed, from the point of view of both the building’s construction and Arup’s internal workflow.


The paper focuses on the building’s roof structure, which is completely free-form, architecturally defined by a 3D doubly-curved NURBS surface. The roof’s surface area is approximately 13 500m2 and is constructed from curved plate girders, each one unique. The roof’s geometry ranges from areas with a radius of curvature of approximately 500m, therefore relatively flat, to areas of high curvature with a radius of 5m or less.
