Circular ring-shaped plate loaded by tangential forces and by isolated point force

The Structural Engineer
Circular ring-shaped plate loaded by tangential forces and by isolated point force
Date published

N/A

First published

N/A

Author

Szabo, S Sarkadi

Price

Standard: £9 + VAT
Members/Subscribers: Free

Buy Now

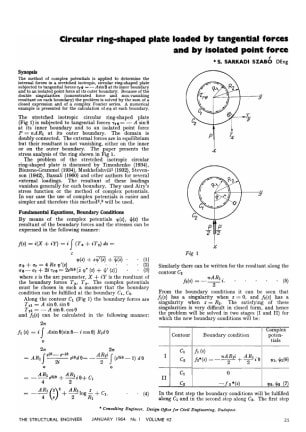

The method of complex potentials is applied to determine the internal forces in a stretched isotropic, circular ring-shaped plate subjected to tangential forces ôrè = -A sin è at its inner boundary and to an isolated point force at its outer boundary. Because of the double singularities (concentrated force and non-vanishing resultant on each boundary) the problem is solved by the sum of a closed expression and of a complex Fourier series. A numerical example is presented for the calculation of ó è at each boundary. S. SARKADI SZABO
